GVD / M6 True Enterprise NVRs
M6 True Enterprise NVRs
型號：M6236, M6036, M6024, M6016, M6012, M6108
商品詳細介紹

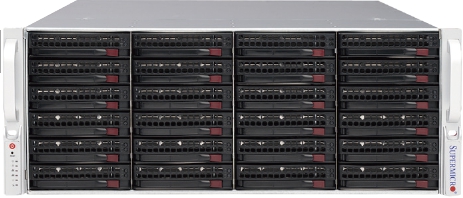

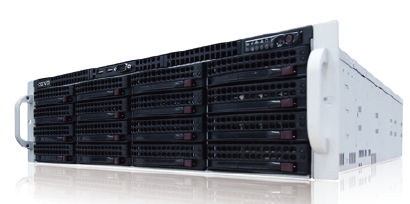

The True Enterprise are GVD’s server-grade NVRs designed for enterprise high-capacity applications. Four models, M6236, M6036, M6024, & M6016, are the heavyweights with redundant hardware (dual power units and dual LAN ports) to allow the extra robustness for enterprise activities, while the other two, M6012 & M6108, are lighter but equally capable.
For video read/write, the four heavyweights can process video on 128 channels, with recording rate up to 384 Mbps, on a 24 x 7 basis, while the lighter ones are capable of 64 channels, with recording rate up to 192Mbps and 288 Mbps.
For storage, the heavyweights can get a boost up to 800TB by connecting an external storage server that is optional. Also on option is a backup server to keep an insurance copy of your video data.
The whole True Enterprise lineup is designed to expand to GVD's Central Management Solution, a large centralized video management platform that controls up to 10,000 channels.
If you are looking for a robust NVR for long and reliable service, look no further than GVD’s True Enterprise NVRs.
♦ License of 32, 48, 64, 96 or 128-channel on option
♦ Built-in with 36, 24, 16, 12, or 8 HDD trays
♦ Storage servers S6024 (240TB) & S6044 (440TB) on option for M6236, M6036, M6024, & M6016
♦ RAID 0,1,5,6,10 to protect video data
♦ Excellent reliability with redundant hardware
♦ Outstanding 24x7 video recording at max. 384 Mbps
Product Highlights
• Virtual Hard Disk (VHD)
For video read/write, the four heavyweights can process video on 128 channels, with recording rate up to 384 Mbps, on a 24 x 7 basis, while the lighter ones are capable of 64 channels, with recording rate up to 192Mbps and 288 Mbps.
For storage, the heavyweights can get a boost up to 800TB by connecting an external storage server that is optional. Also on option is a backup server to keep an insurance copy of your video data.
The whole True Enterprise lineup is designed to expand to GVD's Central Management Solution, a large centralized video management platform that controls up to 10,000 channels.
If you are looking for a robust NVR for long and reliable service, look no further than GVD’s True Enterprise NVRs.
♦ License of 32, 48, 64, 96 or 128-channel on option
♦ Built-in with 36, 24, 16, 12, or 8 HDD trays
♦ Storage servers S6024 (240TB) & S6044 (440TB) on option for M6236, M6036, M6024, & M6016
♦ RAID 0,1,5,6,10 to protect video data
♦ Excellent reliability with redundant hardware
♦ Outstanding 24x7 video recording at max. 384 Mbps
Product Highlights
• Virtual Hard Disk (VHD)
- Painless system recovery
GVD loads an M6 Enterprise NVR with a “virtual hard disk” (VHD), which is a Windows-based system image tool to take a snapshot of system status and NVR software settings to recover your system within 5 minutes once a severe system failure or OS/software corruption occurs in the future. This tool can reduce not only RMA but also the need for on-site support. For users everything just falls back into place so soon.
• Cost-saving
• Cost-saving
- Equally powerful with less cost
Exactly as the name advertises, the M6 Enterprise NVRs are favorable as the cost is concerned. Despite being a less expensive version of its kindred, it shares most of the advantages with the siblings, such as hardware redundancy, high capacity, RAID configuration, rackmount support, and being powerful.
• Time Sector Engine (TSE)
• Time Sector Engine (TSE)
- Excellent read / write
Unlike conventional NVRs with a centralized database, a GVD NVR adopts an exclusive TSE (Time Sector Engine) to handle high bandwidth throughput and to deter latency for massive HD video processing and get superb video display, whether live or not. The NVR has high recording rate at max. 384Mbps, handles up to 128 IP cameras, and processes video at high speed with 150ms~190ms latency for a D1 resolution with full frame rate display, and the NVR gives you the best real-time PTZ control by this exclusive TSE.
• High-capacity
• High-capacity
- Maximum storage and cameras

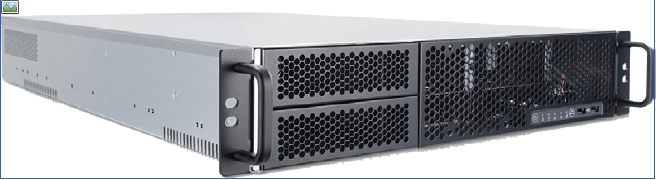

Optimized for enterprise applications, the M6 Enterprise NVR supports high-density HDDs in 2U and features 8 or 12 hot-swappable 3.5" SAS3/SATA hard disk trays. The NVR also have optimized HDD signal trace routing and improved HDD tray design to dampen HDD vibrations and to maximize HDD performance. Stand-alone the NVR supports max. 64 cameras while stacked-up they support up to 10,000 cameras.
• Modbus support & TCP message
• Modbus support & TCP message
- Promise smart buildings and smart cities
The NVR supports Modbus, a very popular serial communication protocol widely-used for the connection of industrial electronic devices. Users don’t need to invest extra effort and cost to incorporate a 3rd-party system quickly. The NVR also features powerful alarm management that is capable of sending TCP messages to alert security operators. These advantages make the NVR highly eligible for some promising solutions such as Smart Buildings for DCS (distributed control system) and Smart Cities for CAP (common alerting protocol) such as IBM IOC.
• Total Solution
• Total Solution
- Solves multiple problems
Alongside the M6 Enterprise is GVD’s complete product line to meet the needs of almost every industry for large-scale video management. After expanding the NVR to GVD Central Management Solution, a control center (E4200) then becomes available, and a video wall (D4200), backup server
(X6024), a failover server (X5016) and an integration gateway (C5001) are allowed to the system. Software-wise the NVR is also designed to do a whole variety of works, for example, to incorporate POS and ATM, to perform video content analysis, to manage alarms and so on.
